Custom Article Dies
Precision flatbed tooling designed for non-standard geometric shapes, specialized retail inserts, point-of-sale displays, leather crafts, and industrial plastic cutouts. Engineered to execute complex, intricate pathways cleanly.
Engineered for Complex Profiles
Article dies are built to handle custom, irregular cutting shapes. Our engineering team intakes complex AutoCAD shapes and plots ideal bridging paths to ensure board stability during high-speed platen stamp runs.
Depending on the target material (e.g. rigid plastics, cardboard sheets, leather, or foams), we adjust the edge profile, steel rule hardness, and ejection pad configurations (using neoprene or dense foam) to eliminate material sticking and paper tears.
Engineering Specifications

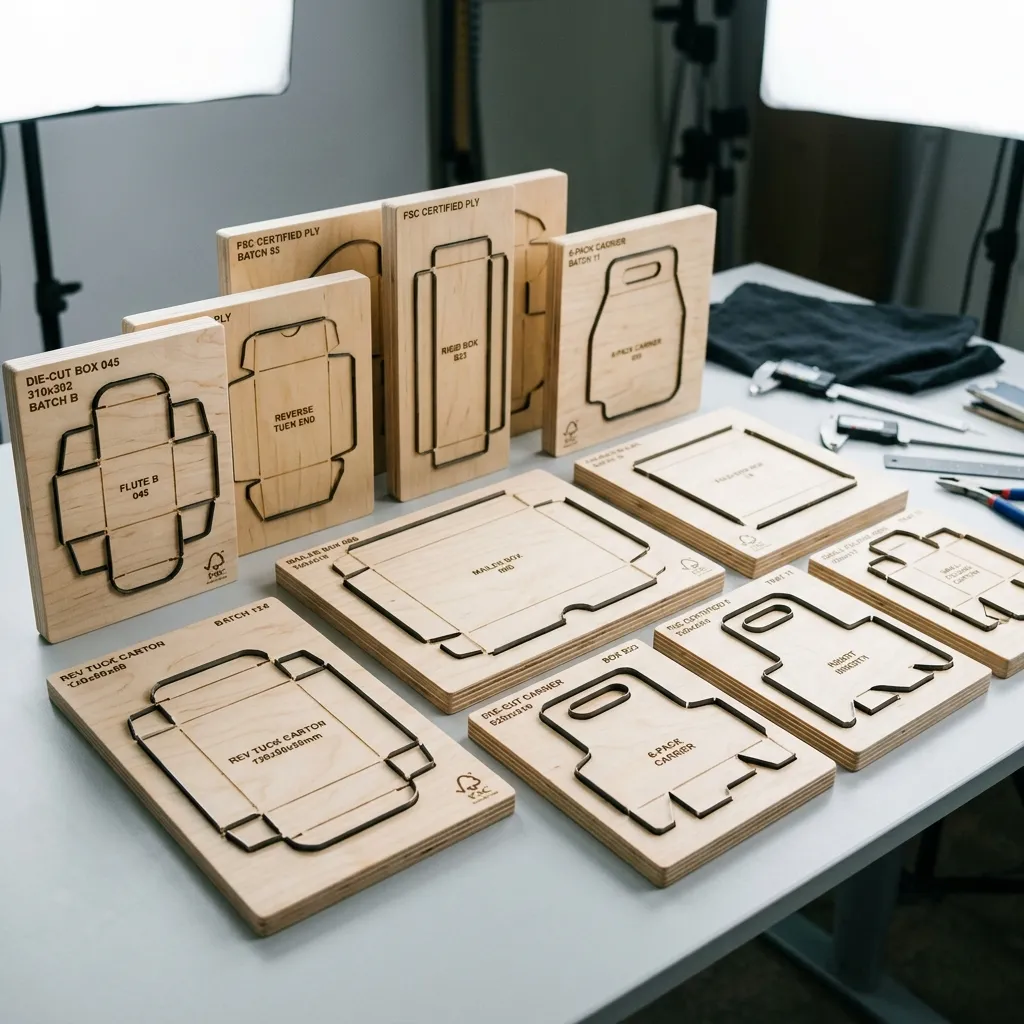

Base Board Material
Multi-ply Premium Birch Plywood (12mm / 15mm / 18mm)
Steel Rule Height
23.80mm / 30.00mm / Custom profiles
Steel Rule Thickness
2 Pt (0.71mm) / 3 Pt (1.05mm) / 4 Pt (1.42mm)
Tolerances
±0.03mm (Laser cut accuracy)
Material Compatibility
Cardboard, plastics, leather, foams, composites
Rule Hardness
Matched to cut abrasive industrial materials
Article Dies FAQ
We accept professional vector format layout files including AutoCAD DXF (.DXF), CF2 (.CF2), Adobe Illustrator (.AI), and EPS. Our design department cleans and prepares vector curves for laser pathway programming.
Yes. Our article dies cut non-paper materials like industrial foams, thin plastics (PET, PVC, PP), leather, fabrics, and composites. We customize the steel rules (using harder rule edges) to ensure long-term durability when stamping dense materials.
Get a Custom Quote for Article Dies
Send us your custom design mockups (.DXF, .CF2) or dimensional bounds, and our engineers will reply with a technical pricing quote.
B2B NDA Protection
We keep your proprietary packaging structural layout CAD files fully secured under non-disclosure configurations.
